HybridWebView .NET Multi-platform App UI (.NET MAUI) allows hosting arbitrary HTML/JS/CSS content in a web view and enables communication between the web view code (JavaScript) and the code that hosts the web view (C#/.NET).
Example with the HybridWebView

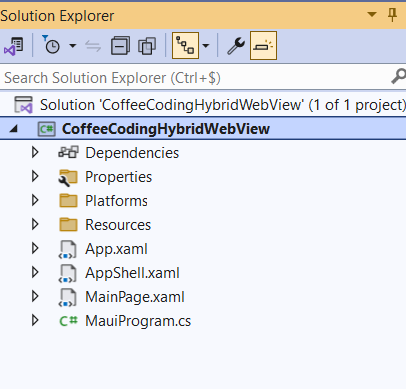

In the Visual Studio 2022 Preview version, create a new MAUI project:

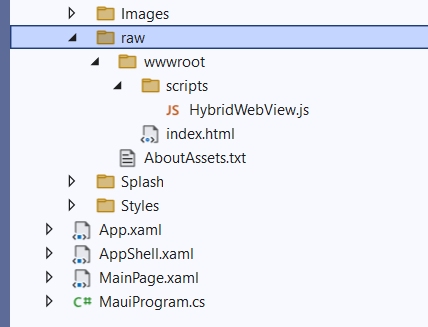

Let’s add web content to our project, specifically a file named _index.html_ and its HybridWebView.js. These files should be in raw format, located in your project directory Resources\Raw\wwwroot as shown below:
Here is the content of the index.html file:
<!DOCTYPE html>
<html lang="en" xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta charset="utf-8" />
<title></title>
<link rel="icon" href="data:,">
<script src="scripts/HybridWebView.js"></script>
<script>
window.addEventListener(
"HybridWebViewMessageReceived",
function (e) {
var messageFromCSharp = document.getElementById("messageFromCSharp");
messageFromCSharp.value += '\r\n' + e.detail.message;
});
</script>
</head>
<body>
<h1>HybridWebView app!</h1>
<div>
<button onclick="window.HybridWebView.SendRawMessage('Message from JS!')">Send message to C#</button>
</div>
<div>
Messages from C#: <textarea readonly id="messageFromCSharp" style="width: 80%; height: 300px;"></textarea>
</div>
</body>
</html>
And the JavaScript file:
window.HybridWebView = {
"Init": function () {
function DispatchHybridWebViewMessage(message) {
const event = new CustomEvent("HybridWebViewMessageReceived", { detail: { message: message } });
window.dispatchEvent(event);
}
if (window.chrome && window.chrome.webview) {
// Windows WebView2
window.chrome.webview.addEventListener('message', arg => {
DispatchHybridWebViewMessage(arg.data);
});
}
else if (window.webkit && window.webkit.messageHandlers && window.webkit.messageHandlers.webwindowinterop) {
// iOS and MacCatalyst WKWebView
window.external = {
"receiveMessage": message => {
DispatchHybridWebViewMessage(message);
}
};
}
else {
// Android WebView
window.addEventListener('message', arg => {
DispatchHybridWebViewMessage(arg.data);
});
}
},
"SendRawMessage": function (message) {
window.HybridWebView.__SendMessageInternal('RawMessage', message);
},
"__SendMessageInternal": function (type, message) {
const messageToSend = type + '|' + message;
if (window.chrome && window.chrome.webview) {
// Windows WebView2
window.chrome.webview.postMessage(messageToSend);
}
else if (window.webkit && window.webkit.messageHandlers && window.webkit.messageHandlers.webwindowinterop) {
// iOS and MacCatalyst WKWebView
window.webkit.messageHandlers.webwindowinterop.postMessage(messageToSend);
}
else {
// Android WebView
hybridWebViewHost.sendMessage(messageToSend);
}
},
"InvokeMethod": function (taskId, methodName, args) {
if (methodName[Symbol.toStringTag] === 'AsyncFunction') {
// For async methods, we need to call the method and then trigger the callback when it's done
const asyncPromise = methodName(...args);
asyncPromise
.then(asyncResult => {
window.HybridWebView.__TriggerAsyncCallback(taskId, asyncResult);
})
.catch(error => console.error(error));
} else {
// For sync methods, we can call the method and trigger the callback immediately
const syncResult = methodName(...args);
window.HybridWebView.__TriggerAsyncCallback(taskId, syncResult);
}
},
"__TriggerAsyncCallback": function (taskId, result) {
// Make sure the result is a string
if (result && typeof (result) !== 'string') {
result = JSON.stringify(result);
}
window.HybridWebView.__SendMessageInternal('InvokeMethodCompleted', taskId + '|' + result);
}
}
window.HybridWebView.Init();
Finally, let’s now add the HybridWebView control to our MainPage.xaml file as shown below:
<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
x:Class="CoffeeCodingHybridWebView.MainPage">
<Grid RowDefinitions="Auto,*"
ColumnDefinitions="*">
<HybridWebView x:Name="hybridWebView"
Grid.Row="1" />
</Grid>
</ContentPage>
If you run the application, you get the rendering of your HTML page like this:
Let’s add the code below to enable two-way communication between our Maui application and our JavaScript code, and vice versa:
<Grid RowDefinitions="Auto,*"
ColumnDefinitions="*">
<Button Text="Send message to JavaScript"
Clicked="OnSendMessageButtonClicked" />
<HybridWebView x:Name="hybridWebView"
RawMessageReceived="OnHybridWebViewRawMessageReceived"
Grid.Row="1" />
</Grid>
namespace CoffeeCodingHybridWebView
{
public partial class MainPage : ContentPage
{
public MainPage()
{
InitializeComponent();
}
private void OnSendMessageButtonClicked(object sender, EventArgs e)
{
hybridWebView.SendRawMessage($"Hello CoffeeCoding from MAUI C# !");
}
private async void OnHybridWebViewRawMessageReceived(object sender, HybridWebViewRawMessageReceivedEventArgs e)
{
await DisplayAlert("I get you 5/5", e.Message, "OK");
}
}
}
And we indeed achieve bidirectional communication between the two elements:
Happy coffee coding
